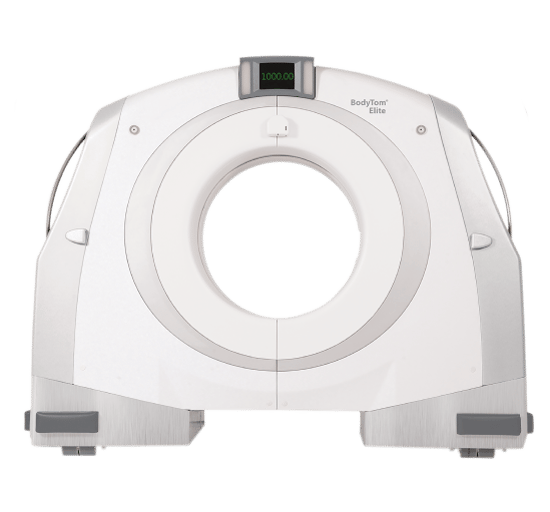

BodyTom®

The BodyTom®  is the latest development in NeuroLogica's portable computed tomography imaging line. It is a portable, full body, 32 slice CT that boasts an impressive 85cm gantry and 60cm field of view. The battery powered BodyTom®  can be transported from room to room and is compatible with PACS, surgical navigation, electronic medical records, and planning systems. Its unique capabilities provide high quality CT images wherever needed, including the Clinic, ICU, OR and Emergency/Trauma Department.

The combination of rapid scan time, flexible settings, and immediate image viewing makes the BodyTom®  a valuable tool to any facility needing versatile real time CT imaging.

Optimized For Use In

Spinal Surgery
Brain Surgery
Orthopedics
Vascular Surgery
Thoracic Surgery
Maxillofacial
Tumor Removal
Transplants
Interventional Radiology
Biopsy
Drains
Shunts
Trauma/ED/ICU
Stroke Centers
Diagnostic Radiology

Features

Superb 3D Image Quality

  • 32 Slice, 32 Images per second
  • 85cm Gantry, 60cm FOV, 4cm Aperture
  • 1.25mm, 2.5mm, 5.0mm, 10mm Slice Thickness
  • 512 x 512 Image Resolution
  • Maximum Scan length of 2 meters

Comprehensive Capabilities

  • Axial
  • Helical
  • Dynamic

Complete Portability

  • Built-in Drive System
  • Internal Lead Shielding
  • Battery Powered
  • Plugs into a Standard Wall Outlet

Easy Integration

  • DICOM 3.1
  • HIS, RIS
  • IHE

Compatible with Electronic Medical Record and Planning Systems

Dimensions

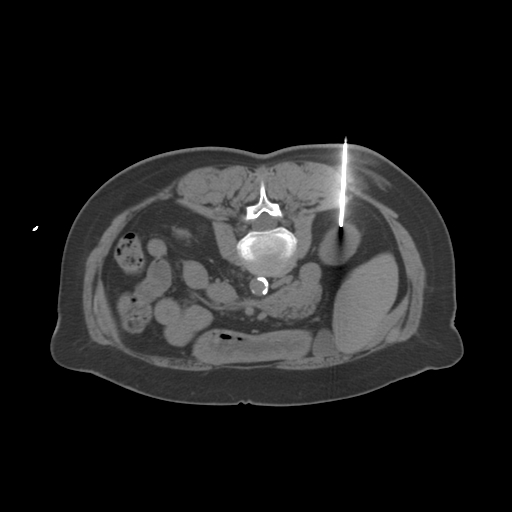

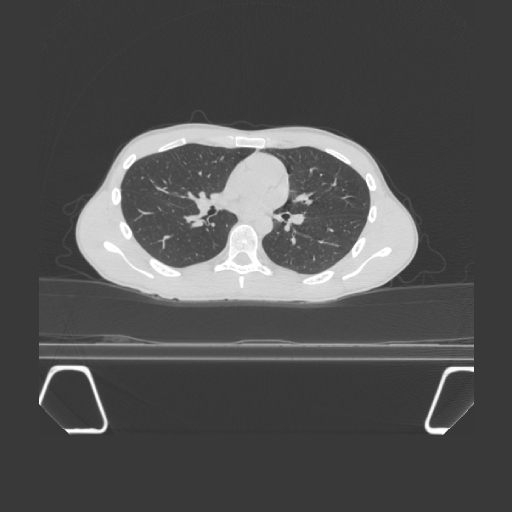

Clinical Images

Intraoperative Applications

Intraoperative Applications

The combination of portability, speed and versatility in clinical applications makes portable intraoperative CT a highly cost-effective solution. The range of clinical applications includes cranial, spinal, ENT, head & neck, CMF, trauma, orthopedic and vascular surgery.

Soft Tissue Resolution

With the use of the BodyTom™, the surgeon is presented with additional information through advanced CT visualization. Not only can the BodyTom™ deliver high quality bone and spine imaging, but high resolution soft tissue imaging not found with typical flat-panel fluoroscopic imaging. This may yield greater surgical precision with improved patient outcomes. It also allows the surgeon to assess any complications which may have formed during the procedure prior to taking the patient off the operating table.

Navigation Integration

The BodyTom™ produces fully DICOM 3.1 compliant images which can be automatically sent to all of the leading computer assisted surgical navigation systems. This allows for the immediate update of the CT image for the purpose of navigation. Images can be transferred to the navigation system directly via Ethernet connection or through any form of external media (USB/CD/DVD).

Maintaining the Sterile Field

Maintaining the sterile field is of the utmost importance during every surgical procedure. Sterile drapes are available which can be applied quickly to maintain the sterile barrier between the BodyTom™ and the operating field.

Portability & Ease of Use

The design of theBodyTom™ provides the convenience of truly portable scanning. Any existing operating room can be utilized without any special modifications to the electrical supply. The BodyTom™ runs off of standard wall power, giving it the flexibility to be used in multiple rooms for any number of procedures over the course of the day.

Internal Lead Shielding & Radiation Protection

The BodyTom™ was designed with patient and staff safety in mind. We take the concerns about radioation exposure seriously, which is why the BodyTom™ is lined with 0.5mm of lead to cut back on any of the x-ray scatter off of the patient. A leaded shield is also provided on the BodyTom™ workstation to protect staff from any unnecessary exposure.

Literature

Accessories

Workstation

  • Slim cart design
  • Genuine Windows 7 Professional 64 bit
  • Integrates with PACS
  • Processor: Intel® Quad CoreTM Xeon Processor 2.67 GHZ
  • Memory: 4 GB
  • Operating system hard drive: 80 GB
  • Data storage: 1 TB secondary
  • Advanced visualization software package
  • 2D | 3D | MPR viewing
  • DVD | CD burner
  • 27" LCD | Monitor Resolution: 2560 x 1440
  • Dose Check
  • Battery Powered
  • MP3 dock with surround sound system
