BodyTom® CT Scanner

with 32 or 64 Slices
and Innovation at the
Point-of-Care
BodyToms 1 (1)

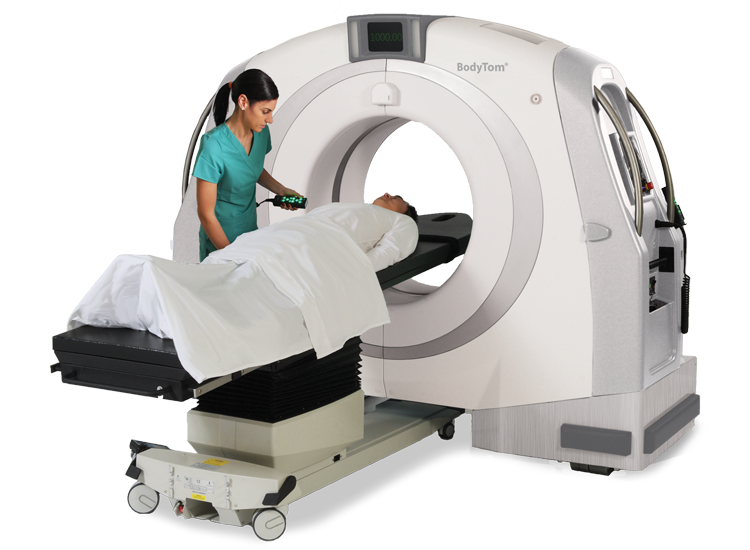

Full Body, Fully Mobile CT Imaging

Bring imaging to the point-of-care with the full-body scanner
 The BodyTom® product line is a multi-departmental imaging solution capable of transforming a room in the hospital into an advanced imaging suite. The system boasts an impressive 85 cm gantry and 60 cm field of view, the largest field of view available in a mobile CT scanner.

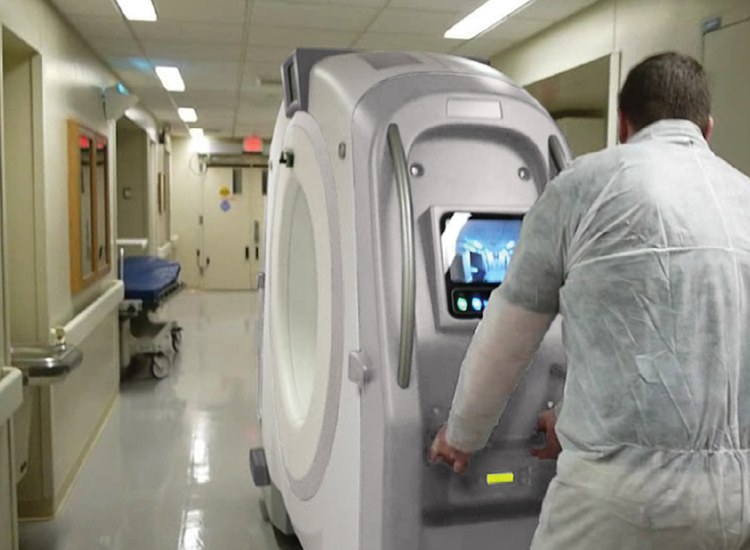

The BodyTom is internally shielded and battery-powered with an innovative internal drive system allowing it to be easily transported from room to room. The BodyTom can be charged using any standard wall outlet. It is compatible with PACS, EMR, planning systems, and surgical and robotic navigation systems.

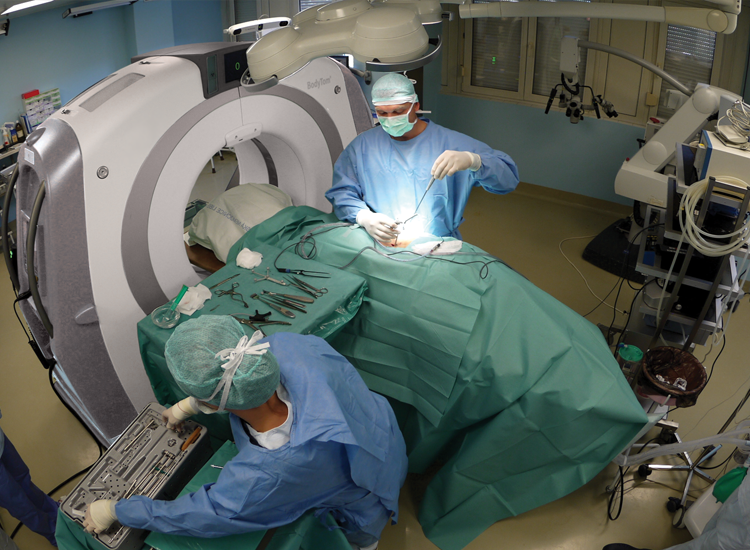

BodyTom provides point-of-care CT imaging wherever high-quality CT images are needed, including interventional radiology, operating theatre (OR), radiology, radiation oncology, the emergency department, and medical examiner facilities. In addition, the flexible settings and immediate image viewing make the BodyTom a valuable tool for your facility for real-time point-of-care mobile imaging.
bodytomimg

The BodyTom product line

Transform multiple locations in your hospital into an imaging suite.

BodyTom® Elite

BodyTom_32 1

BodyTom® 64

14body

Key Features and Benefits

bodytom-Jul-26-2023-06-18-46-5470-PM-1

Allows for a variety of patients and interventional procedures

Reduced risk of exposure to scatter radiation without expensive build-outs

Can be used throughout the facility

No need to add a specialty electrical system, saving the expense

Allowing it to be easily transported from room to room

Compatible with PACS, EMR, surgical and robotic navigational systems - no need to change existing systems

Reducing the need to build out a room and lose needed space and Operating Suites

•Interventional radiology,

•Operating theatre (OR),

•Radiology,

•Radiation oncology

•Emergency department

Key Features and Benefits

bodytom-Jul-26-2023-06-18-46-5470-PM
Allows for larger sized patients; interventional tools
Reduced risk of exposure to scatter radiation without expensive build-outs
Can be used throughout the facility
No need to add a specialty electrical system, saving the expense
Allowing it to be easily transported from room to room
Compatible with current or new PACS, EMR, surgical and robotic navigational systems - no need to change existing systems
Reducing the need to build out a room and lose needed space and Operating Suites
  • Intensive Care Unit
  • Operating Theatre (OR)
  • Pediatrics
  • Radiology
  • Emergency department

Clinical Specialties

Find the BodyTom that best fits your specific medical discipline

Interventional radiology

shutterstock_1707277675-1

Neurosurgery

CereTom Elite OR_SM 1-3

Medical examiners

CereTom Elite OR_SM 3

Brachytherapy

22xx

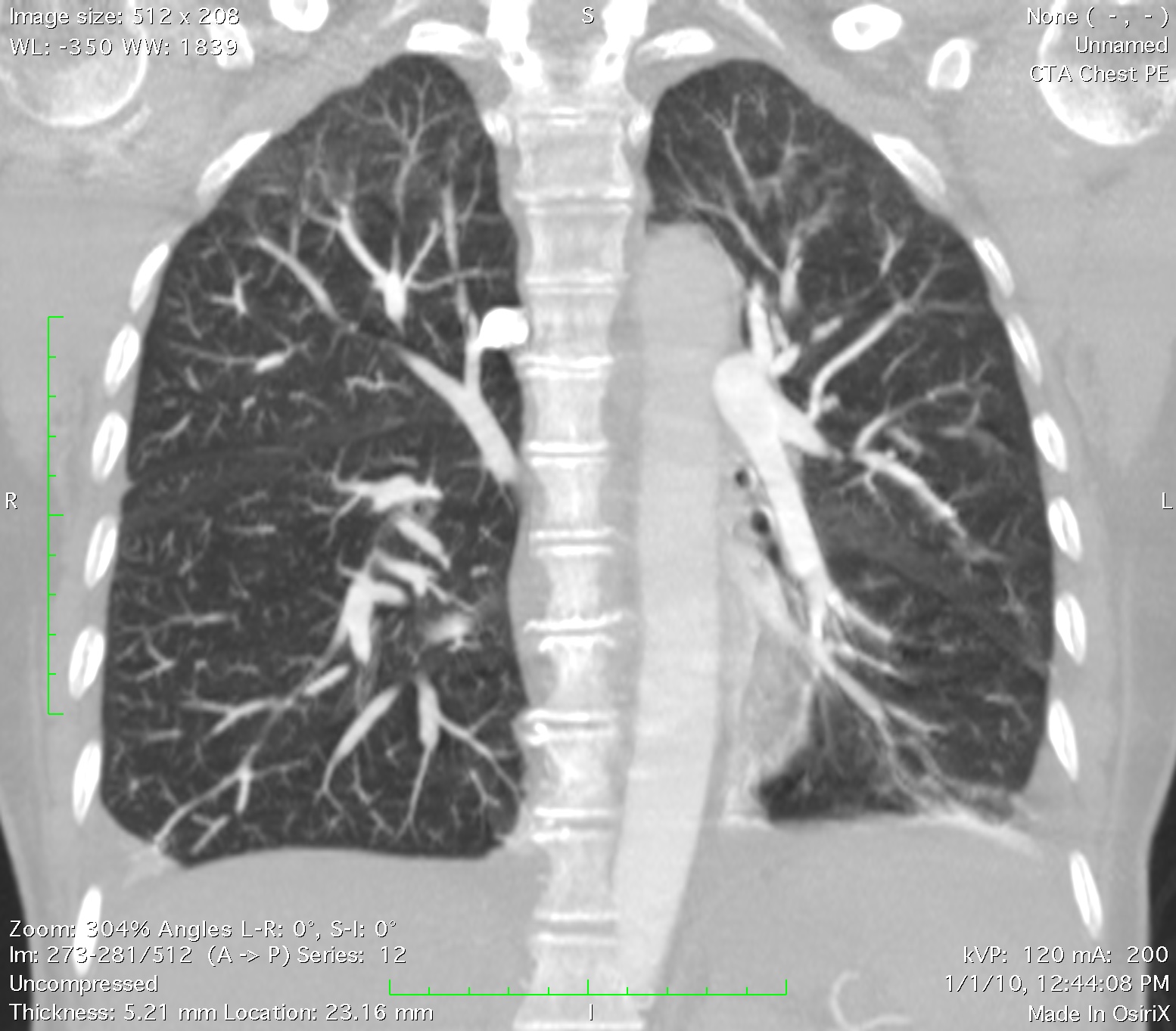

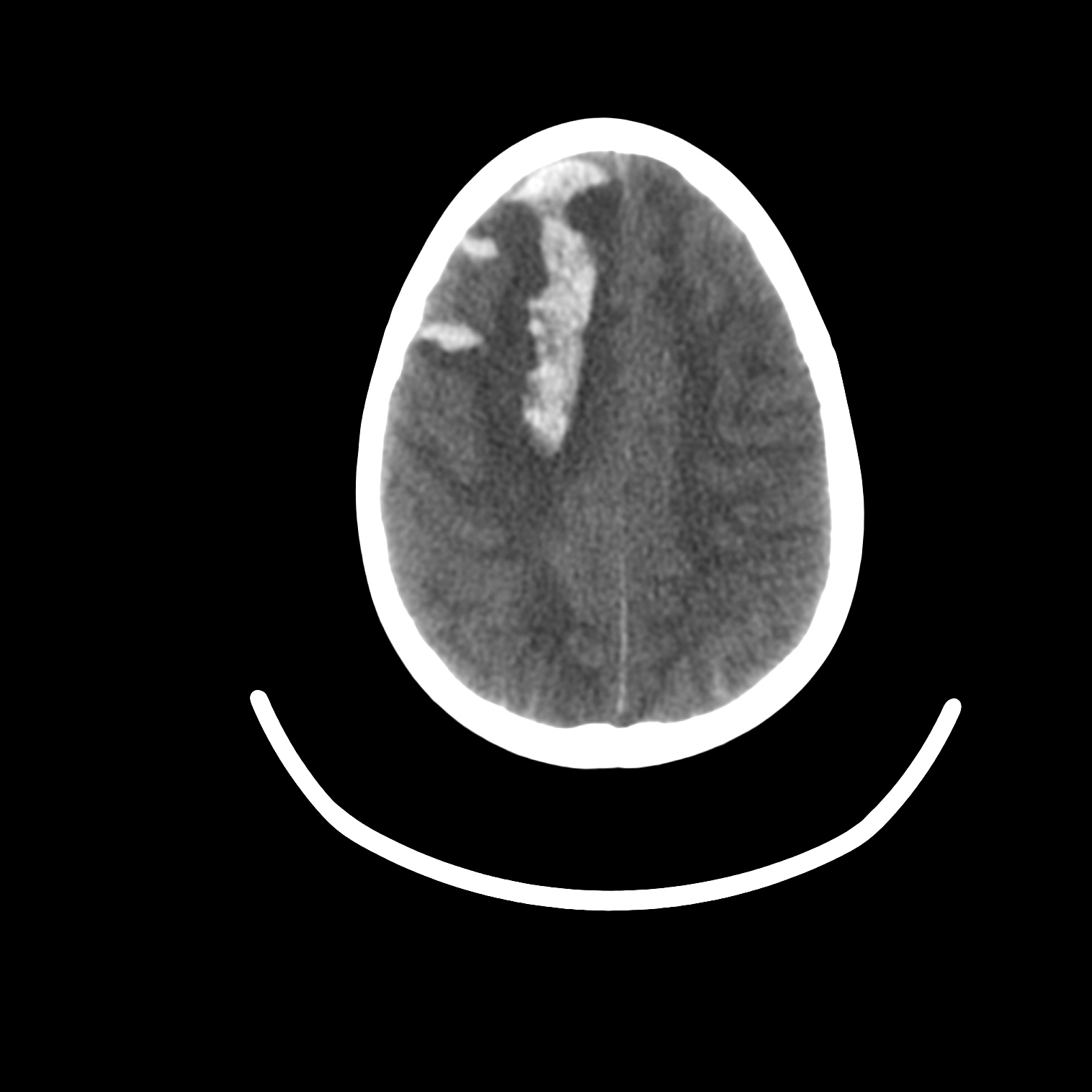

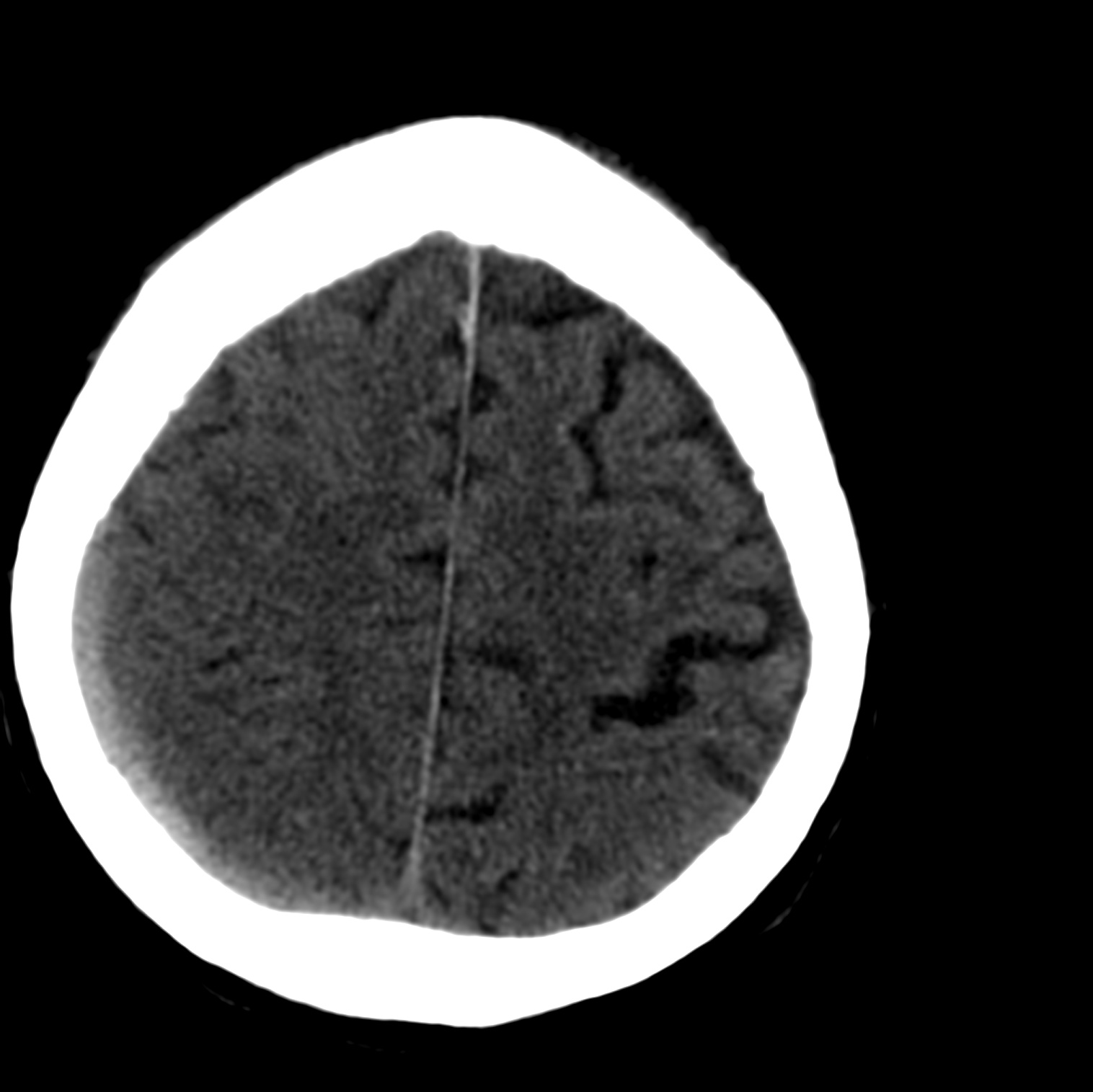

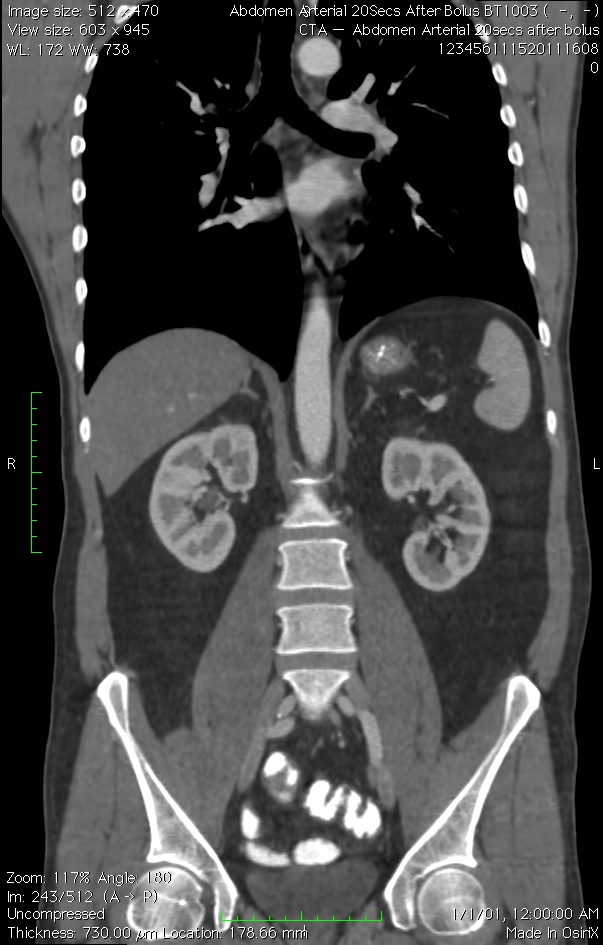

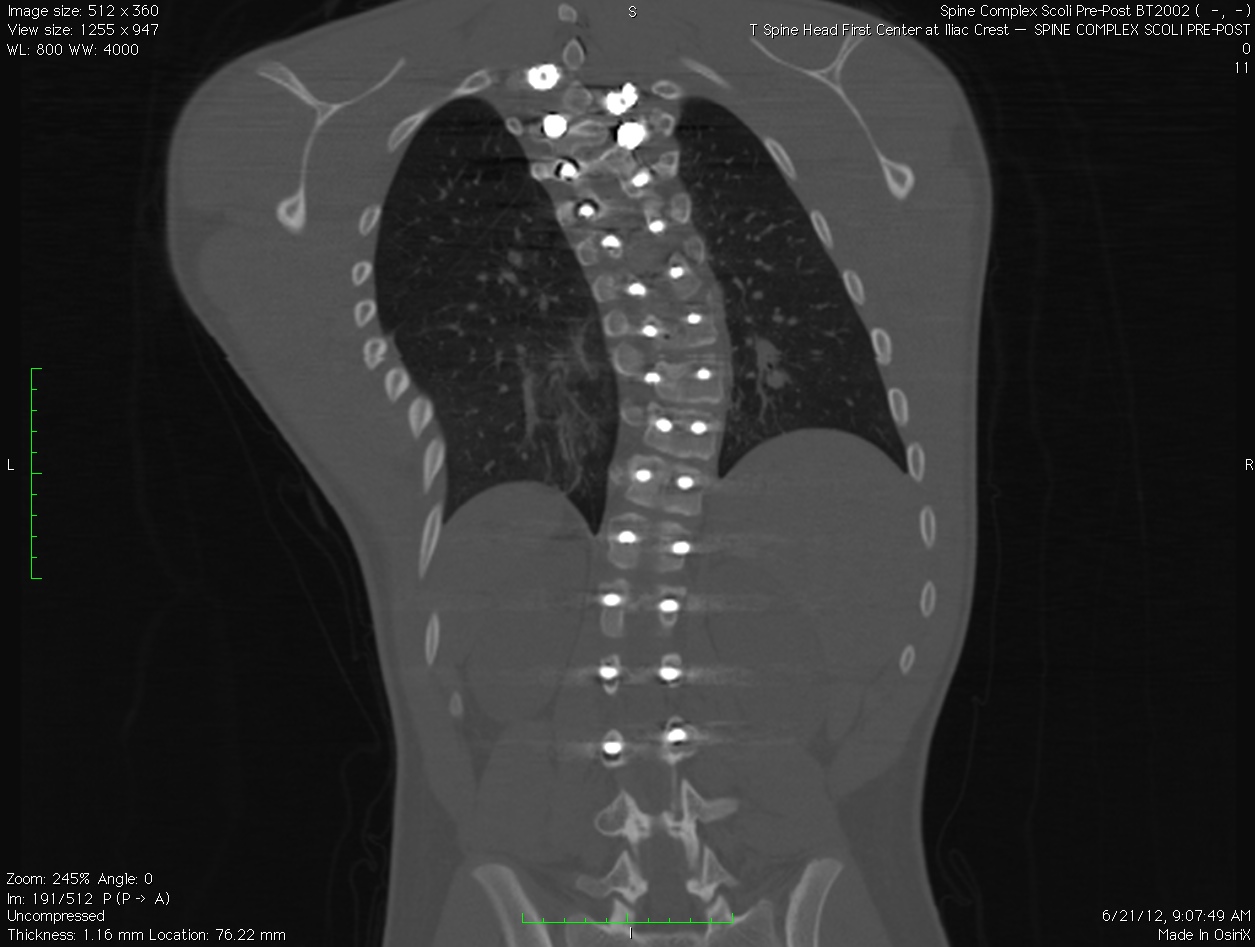

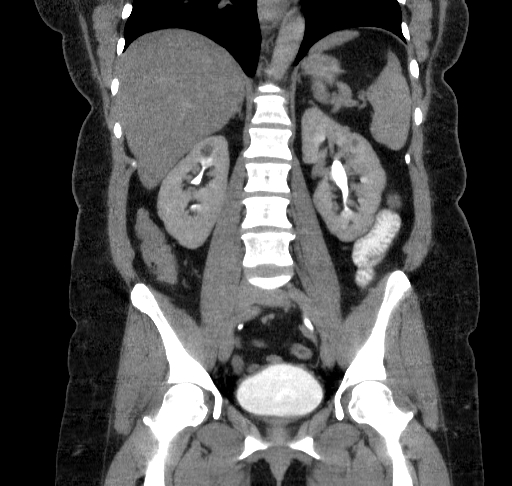

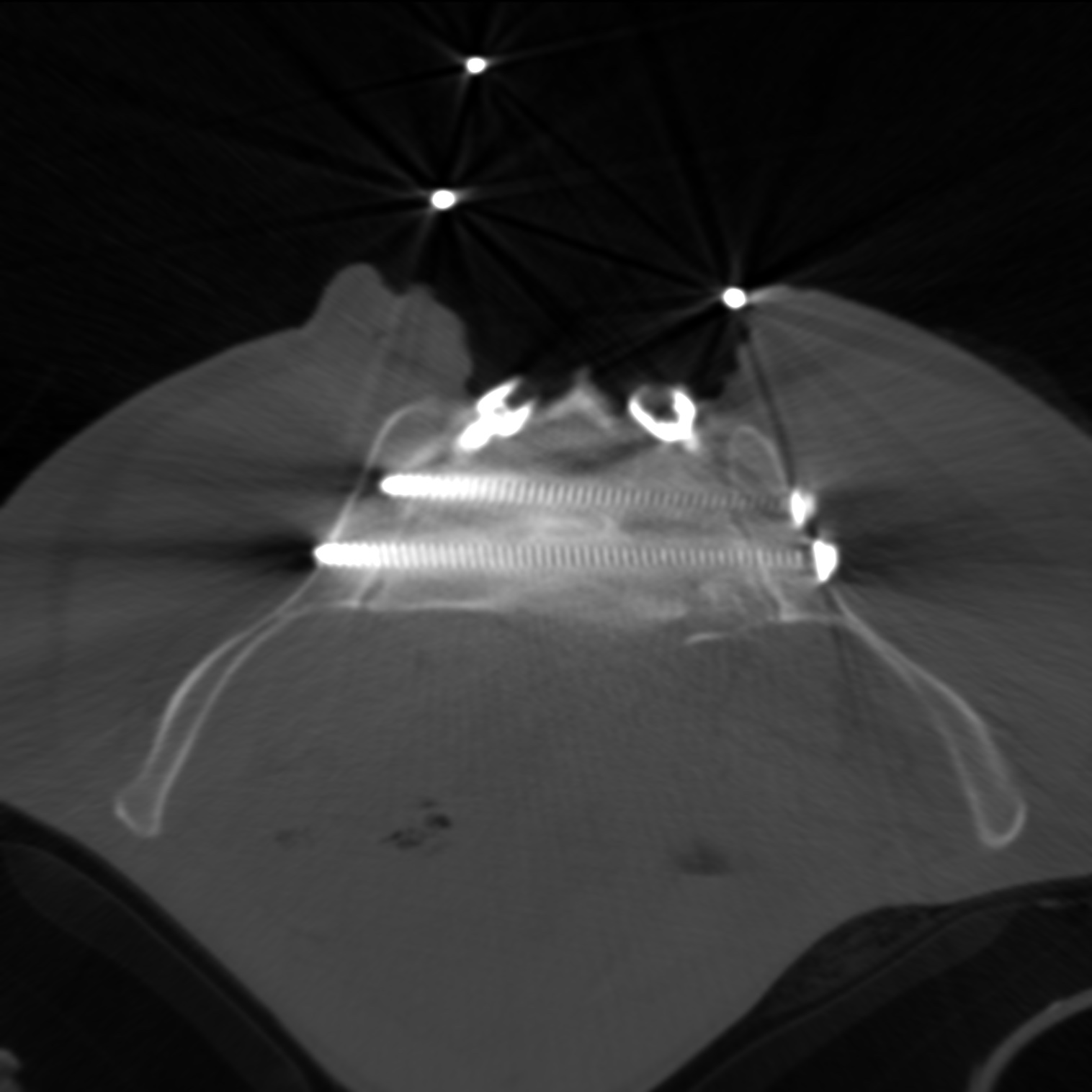

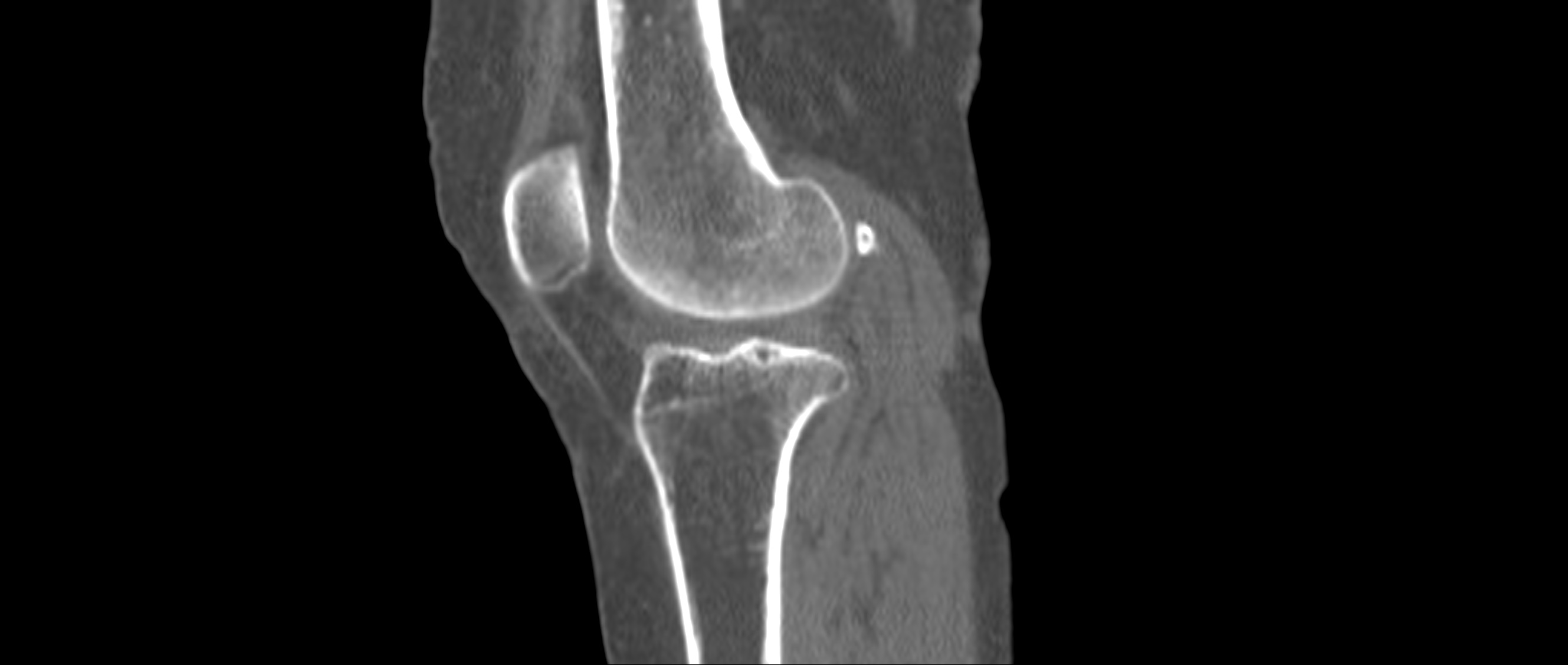

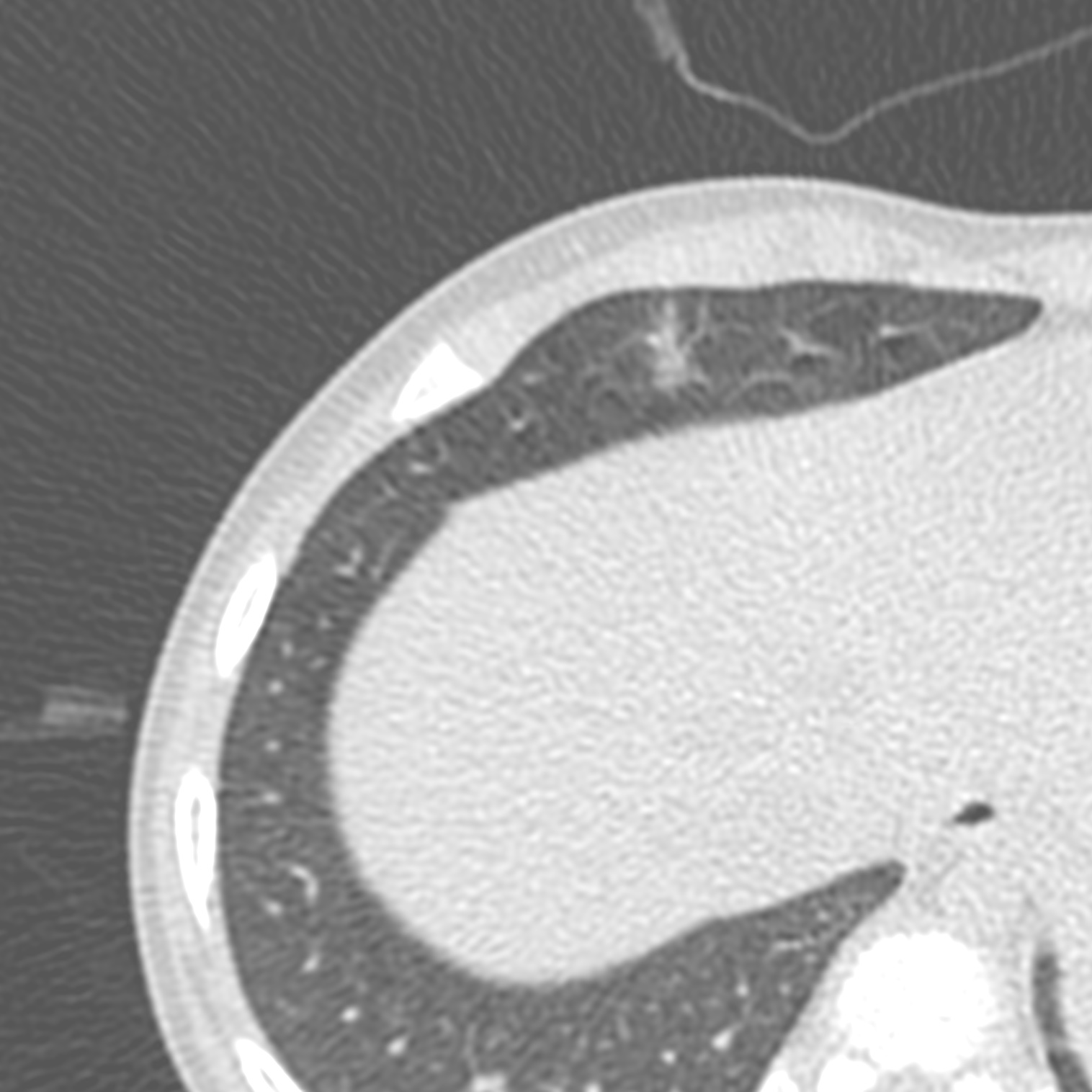

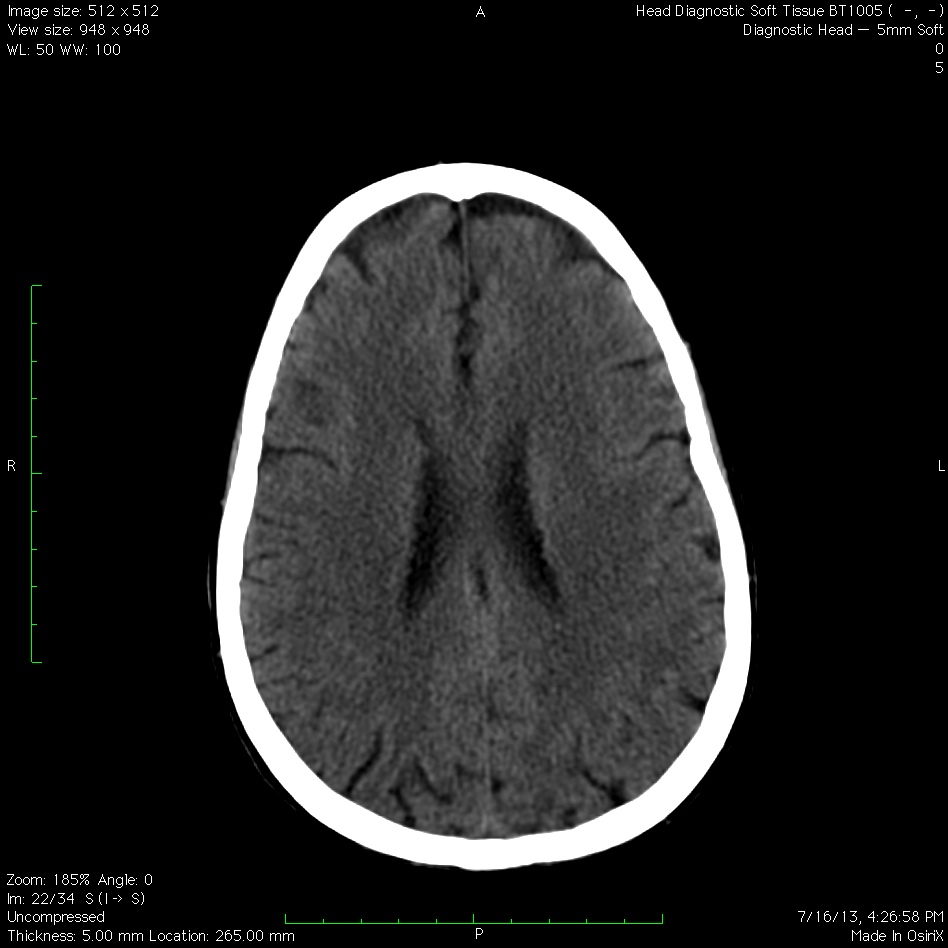

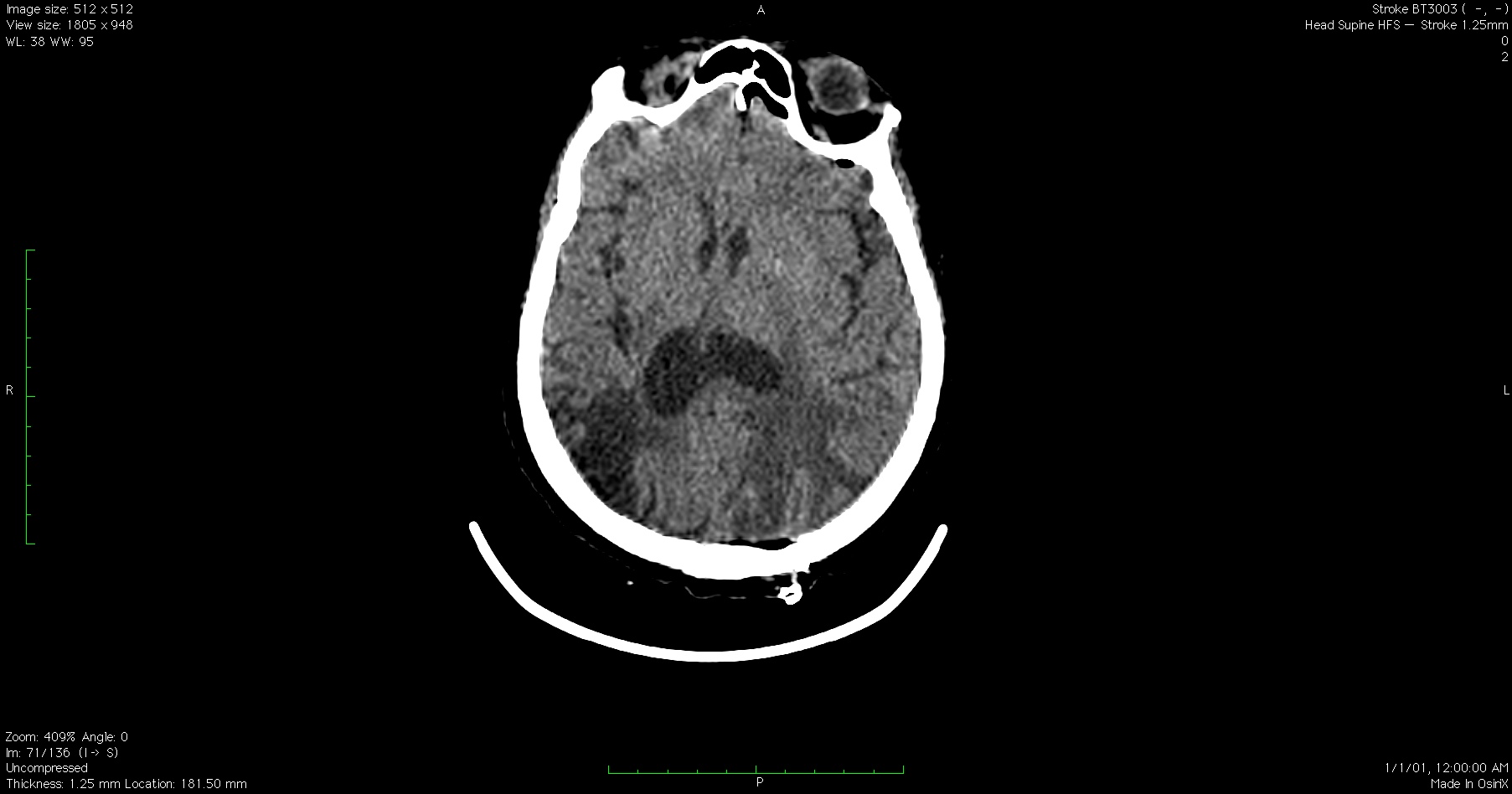

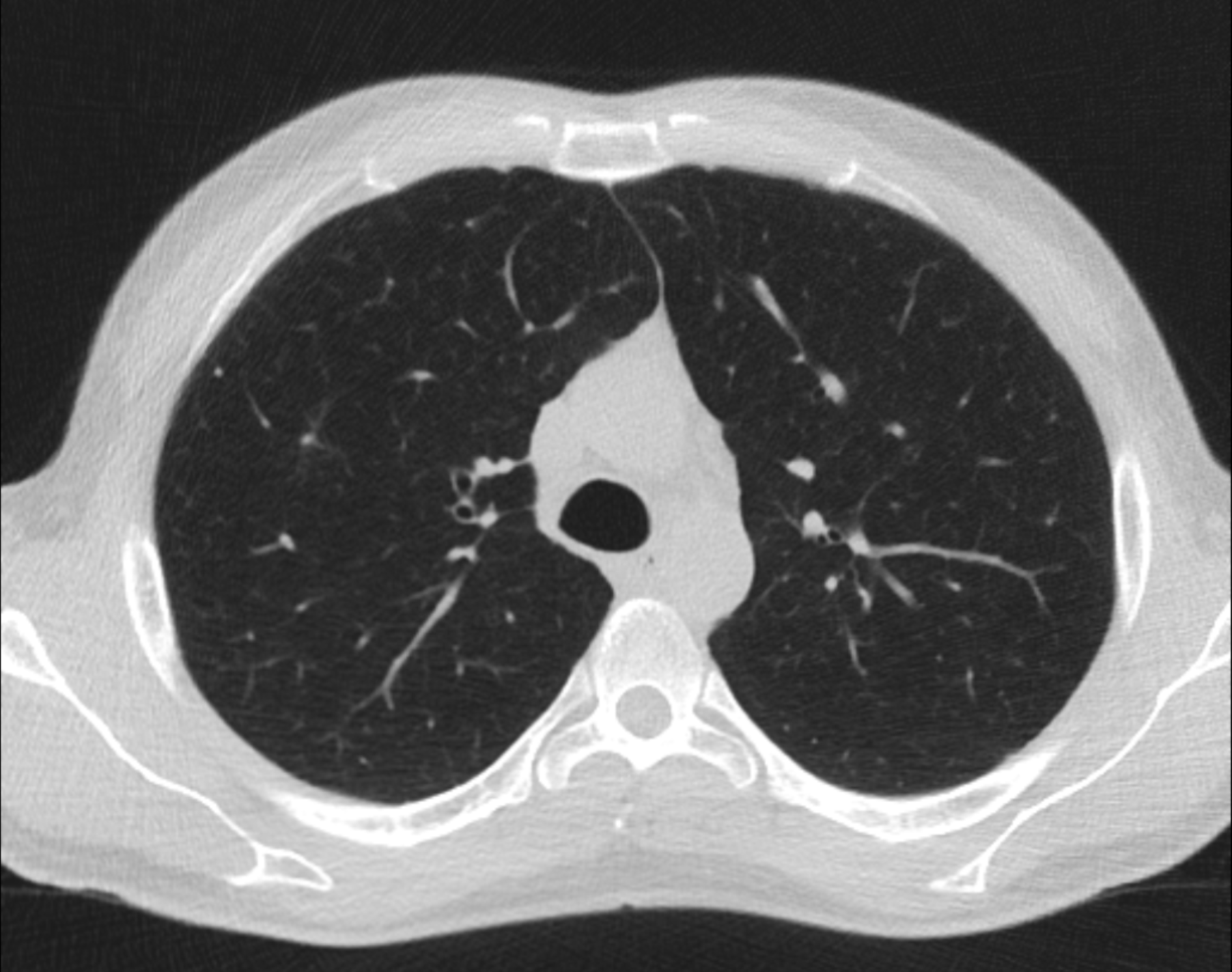

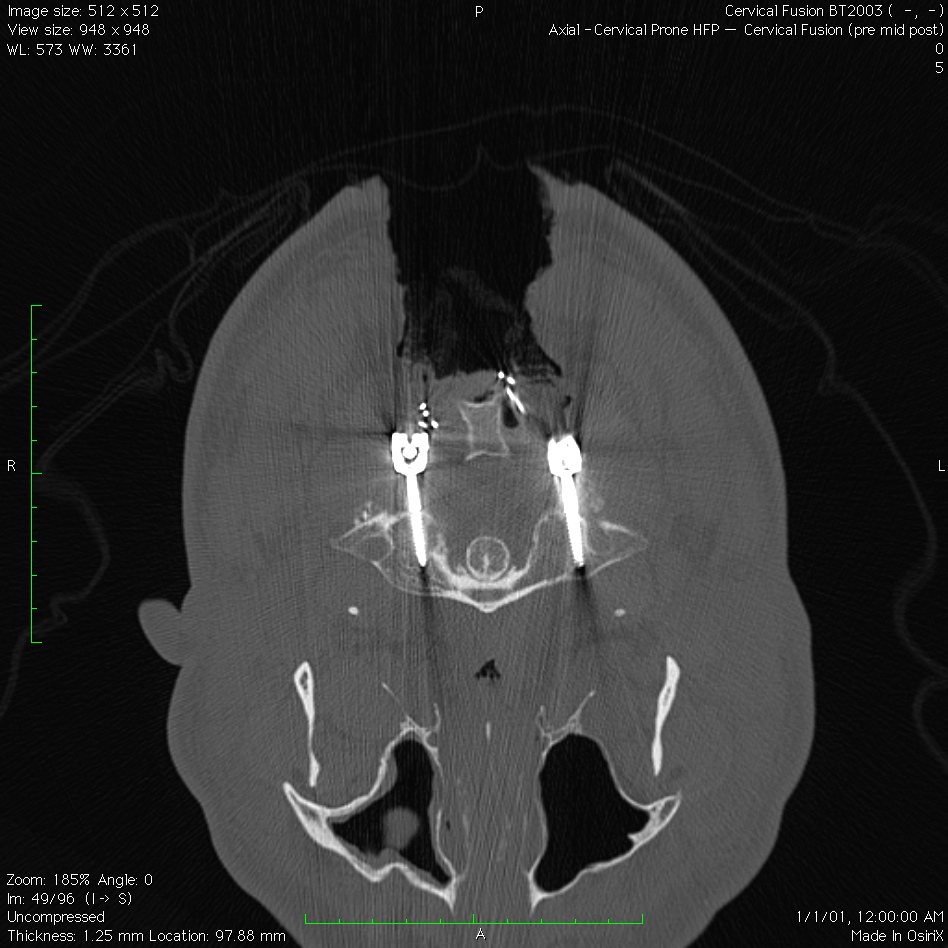

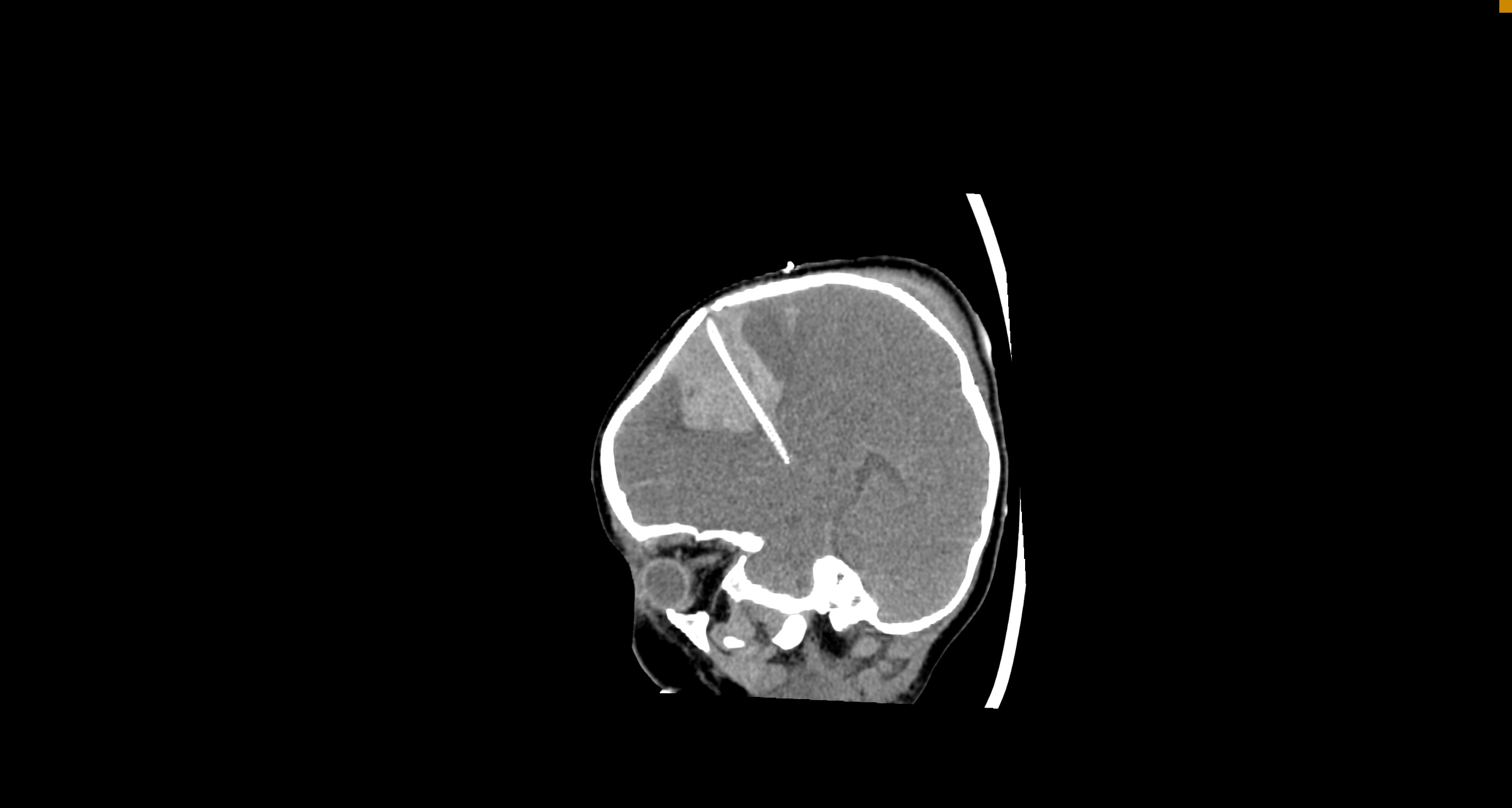

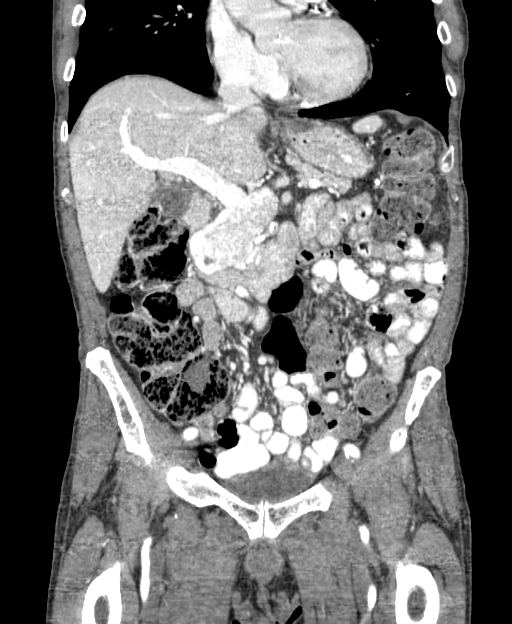

BodyTom® Image Gallery

BodyTom® Elite (32 slice) and BodyTom® 64 (64 slice)

Specifications

BodyTom Dimensions

BodyTom® Elite
BodyTom® 64
Main Detector
32 Rows
64 Rows
Axial Coverage
8 X 1.25
16 X 0.6
Helical Coverage
32 X 1.25 mm
64 X 0.6 mm
Maximum Helical Scan Time
60 sec
60 sec
Dynamic Scan Time
60 sec
60 sec
Dynamic Scan Range
40 mm
40 mm
Patient Aperture
85
85
Scanned FOV
60
60
Tube Voltage
80,100,120,140kV
80,100,120,140kV
Tube Current
30-300 mA
30-300 mA
Power Supply
42KW
42KW
Heat Capacity
3.5MHU
3.5MHU
Reconstruction Matrix
512 x 512
512 x 512
Reconstruction Field of View
5-60 cm
5-60 cm
Reconstructed Images per Second
> 16 images/sec
> 16 images/sec
DAS Heating
Passive
Active
Recon OS
Win 10
Linux

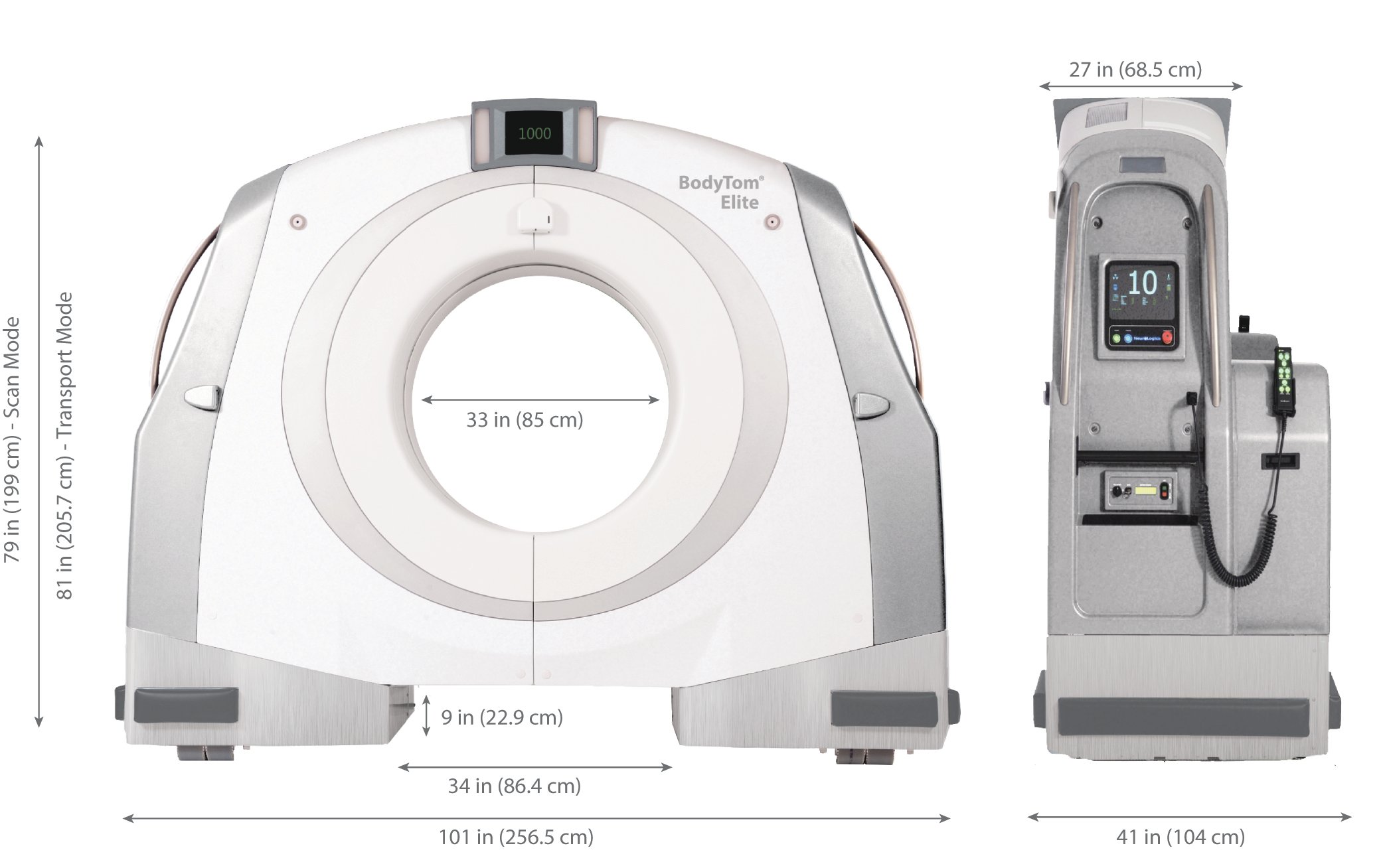

BodyTom Dimensions

BodyTom Elite Dimensions 1 (3)

Dimensions are same for both the BodyTom Elite and BodyTom 64

BodyTom Attributes

Versatility

  • Ability to perform axial, helical (CTA), and dynamic (CTP) scanning
  • Internal drive system provides easy movement of the system throughout the hospital
  • Battery-powered, charges from any standard outlet
  • Wireless or wired connectivity to PACS and HIS/RIS
  • Compatible with robotics/surgical navigation

Performance

  • Large 60 cm field of view
  • 2D, 3D, and MPR viewing capabilities
  • BodyTom Elite - 32 slice, 1.25 mm detector
  • BodyTom 64 - 64 slice, 0.60 mm detector

Open Platform

  • Ability to integrate with all DICOM-compatible surgical navigation and robotic systems
  • Compatible with cantilevered, radiolucent surgical and diagnostic tables

Safety

  • Mobile CT scanner designed with 0.75 mm internal lead shielding
  • Internally lead shielded to minimize room scatter
  • Workstation can be configured with a 0.5 mm lead shield for further protection of staff
